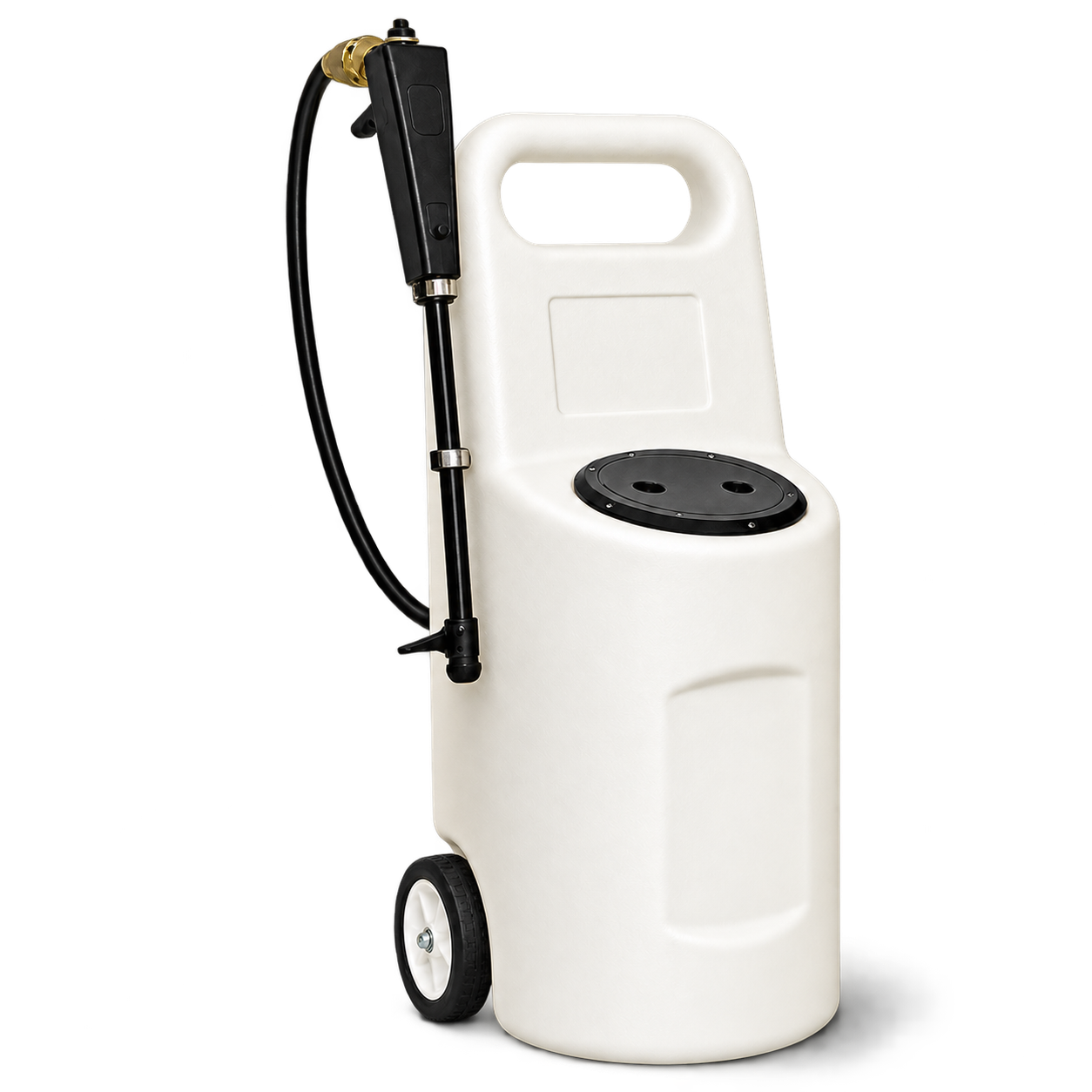

SAFT Ni-Cd Battery Water-Filling Systems

Maintenance equipment for safe, quick and controlled topping-up of Ni-Cd batteries with purified water. The equipment supports railway workshops and compatible central water-filling circuits, reducing servicing time and operator workload.

SAFT Ni-Cd Battery Water-Filling Systems

Product description

Product overview

Maintenance equipment for safe, quick and controlled topping-up of Ni-Cd batteries with purified water. The equipment supports railway workshops and compatible central water-filling circuits, reducing servicing time and operator workload.

Technical selection

Selection follows the vehicle duty profile, load current, autonomy, operating temperature, charging system and installation requirements. Battery format, protection, connections and maintenance access are coordinated with the vehicle interfaces.

Maintenance and lifecycle

Inspection, testing and maintenance follow the selected manufacturer’s instructions and site operating procedures. EKA System evaluates installation, commissioning, service access and lifecycle support as part of the project.

Technical specifications

ParameterValue
BrandSAFT
ProductDigital Water Filling Station
ApplicationNi-Cd battery water topping-up
Main tank capacity60 L
Return tank5 L
Power supply120 V or 230 V, 50/60 Hz
Internal power source12 V / 20 Ah battery
Autonomous operationUp to approximately 10 hours
Filling hose10 m
Operating temperature+5 °C … +35 °C
DisplayLCD screen
Monitored valuesStatus, flow and filled volume
Filling controlAutomatic end-of-fill detection
Typical applicationRailway Ni-Cd batteries with central water-filling circuits

Applications

  • Railway onboard auxiliary power
  • Project-specific vehicle and workshop duties
