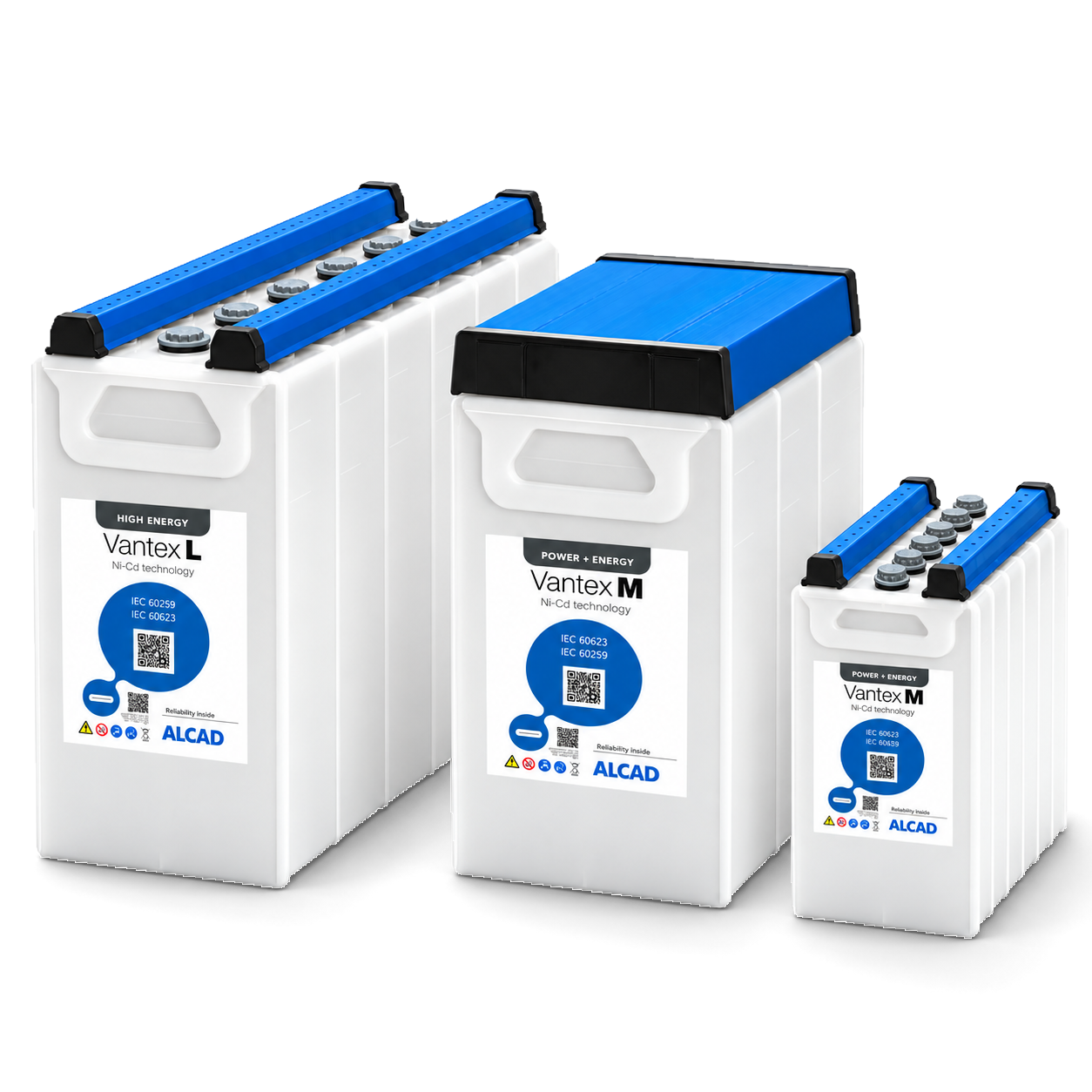

ALCAD Vantex Ni-Cd Batteries

Long-life industrial Ni-Cd batteries with low maintenance requirements for critical standby power in energy, industry, oil and gas, transport and infrastructure. Pocket-plate construction supports operation under demanding conditions.

ALCAD Vantex Ni-Cd Batteries

Product description

Product overview

Long-life industrial Ni-Cd batteries with low maintenance requirements for critical standby power in energy, industry, oil and gas, transport and infrastructure. Pocket-plate construction supports operation under demanding conditions.

Technical selection

Cell selection is based on discharge current, duration, end voltage, operating temperature and charging conditions. Capacity and cell count must be checked against the selected manufacturer’s discharge data and the system voltage limits.

Maintenance and lifecycle

Inspection, testing and maintenance follow the selected manufacturer’s instructions and site operating procedures. EKA System evaluates installation, commissioning, service access and lifecycle support as part of the project.

Technical specifications

ParameterValue
BrandALCAD
SeriesVantex
Battery technologyIndustrial Ni-Cd
Cell constructionPocket-plate
Total capacity range8 – 1700 Ah
VTX1 L capacity15 – 1700 Ah
VTX1 M capacity8 – 1330 Ah
VTX1 L discharge profile1 – 100 hours
VTX1 M discharge profile30 minutes – 3 hours
Service life20+ years @ +25 °C
Long-term temperature performanceUp to +40 °C
Short-term temperature tolerance-40 °C / +70 °C
Typical applicationsUPS, switchgear, process control and emergency systems
Maintenance characteristicsLow maintenance / minimised topping-up requirements

Applications

  • Industrial DC backup
  • Project-specific stationary applications
